Compact Busbars for Motor Circuit Breakers 120A

Spacing 45+9+9mm (with side-mounted auxiliary contacts)

CPM27212

2 Connections

CPM47212

4 Connections

CPM27212 (2 Connections)

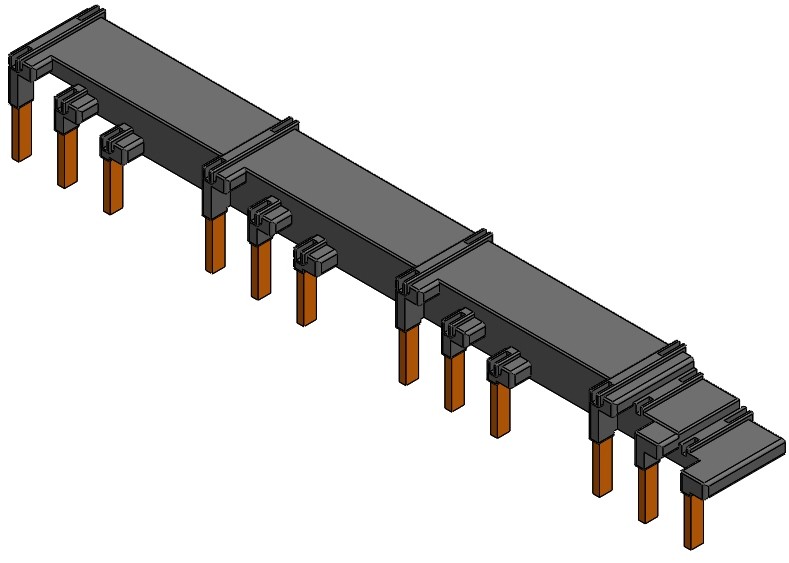

CPM47212 (4 Connections)


Technical Data

For use with Motor Circuit Breakers

UL508


  • 600V AC
  • Imax= 120 A


IEC/EN60947-1


  • Ue = 690V
  • Uimp = 8kV
  • Ith= 120A
    •  Allen -Bradley: 100M-F
    • Schneider: GV3P
    • Siemens: 3RV10.31
    • Eaton (Moeller): PKZ4
    • Lovato: 11SM2A
    • GE. Power Controls: GPS2B

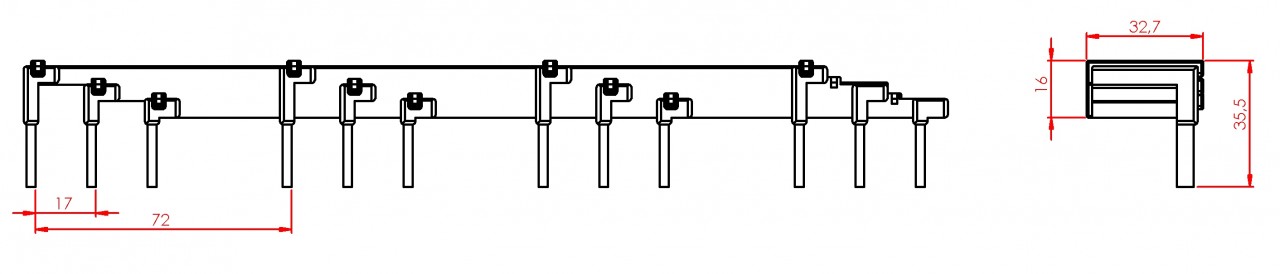

    Dimensions:
