Compact Busbars for Motor Circuit Breakers and Contactors 64A

Spacing 45+9mm (with side-mounted auxiliary contact)


CPM2546

2 Connections

CPM3546
3 Connections

CPM4546

4 Connections

CPM5546

5 Connections

CPM2546 (2 Connections)


CPM3546 (3 Connections)


CPM4546 (4 Connections)


CPM5546 (5 Connections)


Technical Data

For use with Motor Circuit Breakers

For use with Contactors

UL508


  • 600V AC
  • Imax =64A


IEC/EN60947-1



  • Ue=690V
  • Uimp =6kV
  • Ith =64A
    • Allen -Bradley: 140M-C...; 140M-D..
    • Schneider: GV2ME...
    • Siemens: 3RV1011...;3RV1021...
    • Eaton (Moeller): PKZM 0
    • Lovato: 11SM1A...;11SM1B...
    • GE.Power Controls: GPS1...
    • ABB: MS116 - MS132
    • WEG: MPW16-MPW25
    • Allen -Bradley: 100-C30; 100-C37
    • Schneider: LC1-09 - LC1-D38
    • Siemens: 3RT1024 - 3RT1026
    • Eaton (Moeller): DIL0M - DIL0AM
    • Lovato: BF20, BF25
    • GE. Power Controls: CL25
    • WEG: CWM25

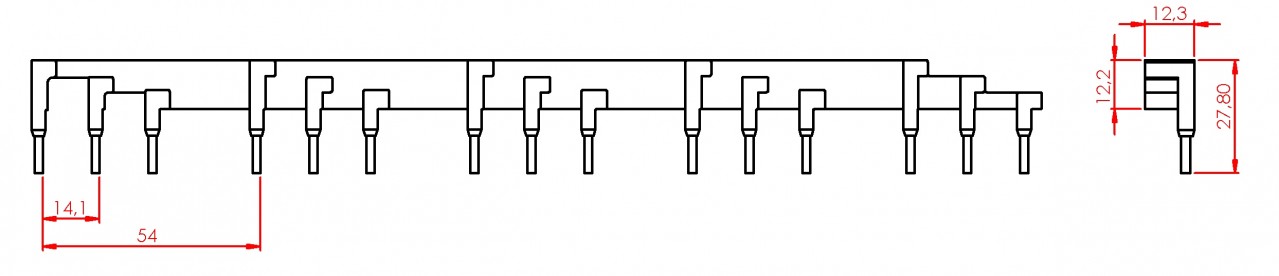

    Dimensions:
