Star point bridges

Ref


For use with

WKPE1



U=690V

I=16A


IEC 947

Star Point Bridge 16A WKPE1


 Minicontactors. P=2,2 - 4 kW. Wide 45mm


  • Allen Bradley: 100-M05N, M09N
  • Schneider: LC1-K07 - LC1-K12
  • Siemens: 3RT1015 - 3RT1017
  • Eaton (Moeller): DIL EM, DILM7, DILM12, DILM15
  • Lovato: BG06 - BG12
  • GE. Power Controls: LS07, MC0, MC1
  • ABB: B6, B7, AS09 - AS16
  • WEG: CW07, CWC07

WKPE2


U=690V

Iu=25A


IEC 947

Star Point Bridge 25A WKPE2




 Contactors. P=4 - 7.5 kW. Wide 45mm

  • Allen Bradley: 100-C09 - 100-C23
  • Eaton (Moeller): DIL 00M - DIL 00AM
    • Lovato: BF09 - BF16
    • GE. Power Controls: CL00, 01, 02
    • ABB: AF09 -30 - AF30-30
    • WEG: CWM9 - CWM18

    WKPE4


    U=690V

    Iu =40A


    IEC 947

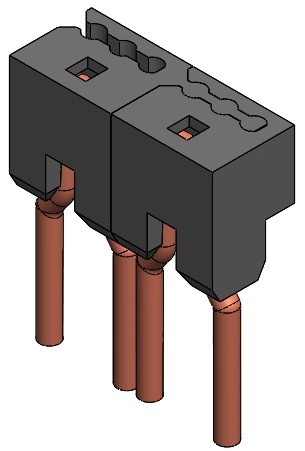

    Star Point Bridge 40A WKPE4




     Contactors. P=11 - 15 kW. Wide 45mm


    • Allen Bradley: 100-C30, C37
    • Schneider: LC1-D09 - LC1-D38
    • Siemens: 3RT1023 - 3RT1026
    • Eaton (Moeller): DIL 0
    • Lovato: BF26 - BF38
    • GE. Power Controls: CL25
    • WEG: CWM25
